Assembling a large footprint pallet (LFP)

Welcome to this LFT assembly guide. This page provides easy-to-follow instructions for assembling the large footprint pallet. You’ll also find a detailed list of what’s included in the LFP kit, so you can quickly verify that all components are ready for assembly.

Follow the steps below to get started!

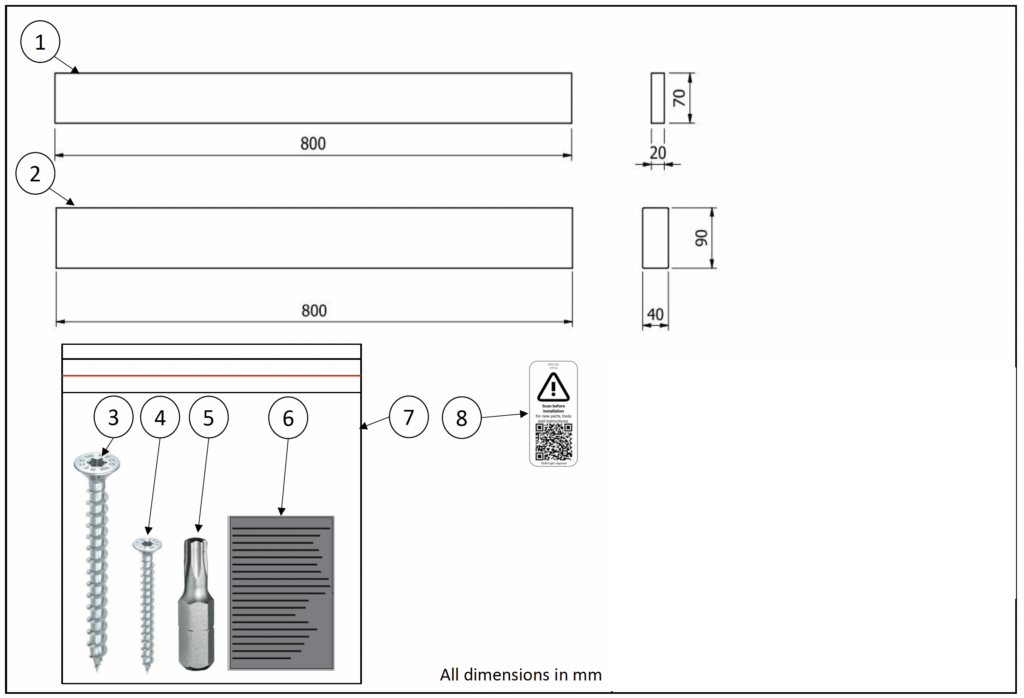

What's in the box?

Partnumber: HYD0795

Quantity: 2

Partnumber: HYD0796

Quantity: 2

Partnumber: HYD0797

Quantity: 4

Partnumber: HYD0351

Quantity: 8

Partnumber: HYD1190

Quantity: 1

Partnumber: HYD1191

Quantity: 1

Partnumber: HYD0603

Quantity: 1

Partnumber: HYD1193

Quantity: 1

Assembly of large footprint pallet (LFP)

Step 1:

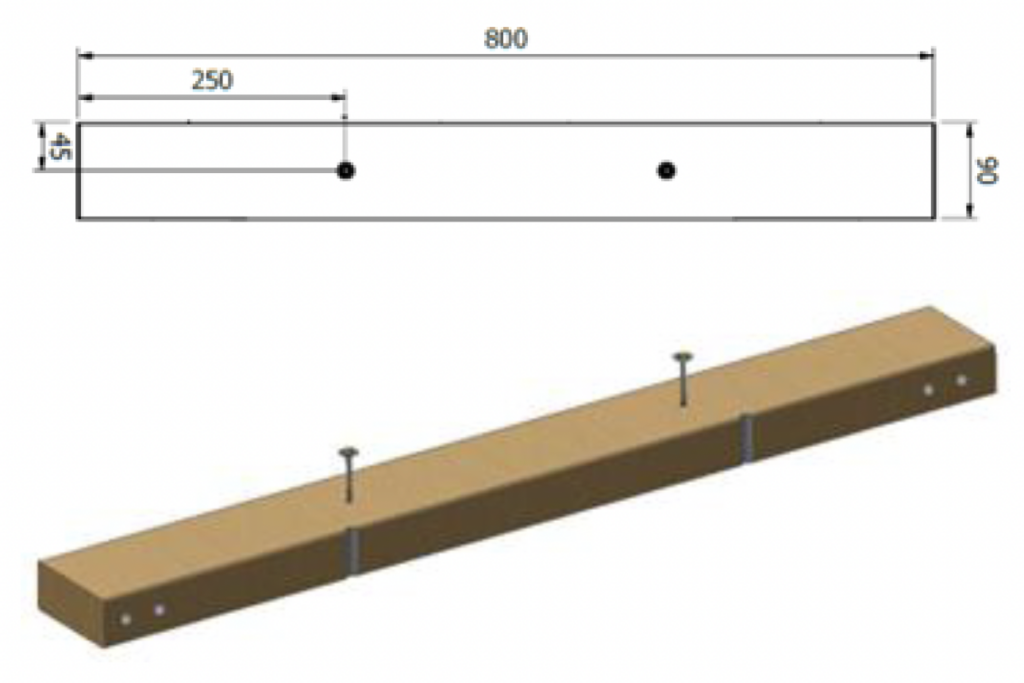

Use the bit ⑤ to screw 4x80mm ③ half way into beam ②.

Do this for both beams.

Instructional image supporting textual instruction step 1 to assemble a Large Footprint Pallet.

Step 2:

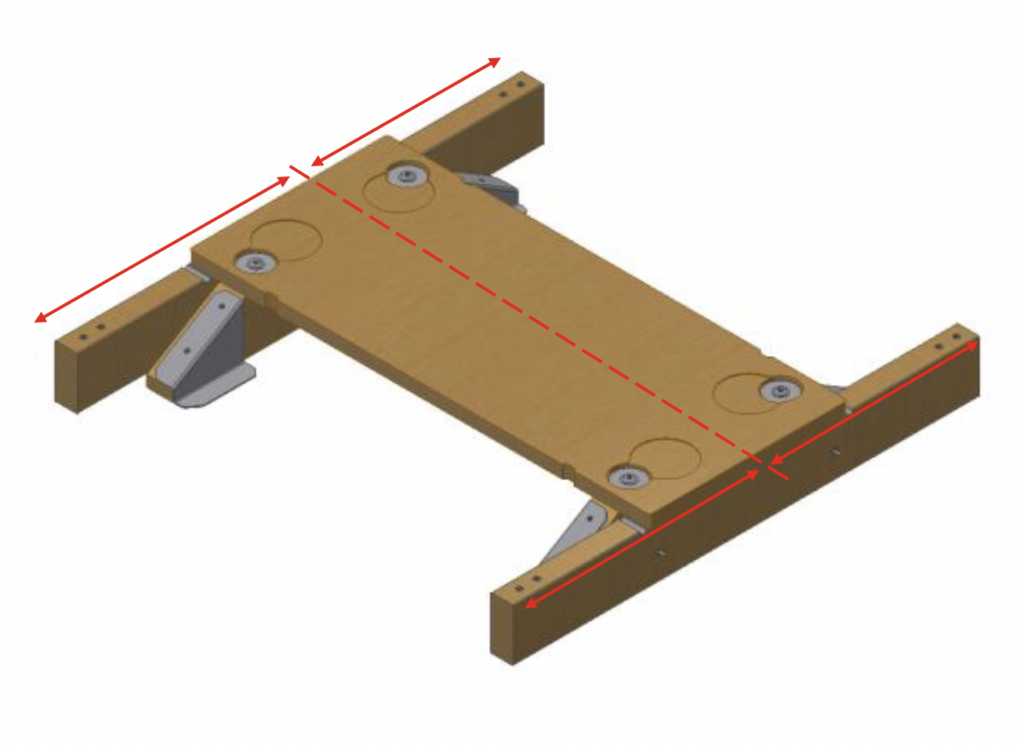

Connect beam ② to both sides of the pallet. Making sure to align the beam to the center of the pallet.

Instructional image supporting textual instruction step 2 to assemble a Large Footprint Pallet.

Step 3 :

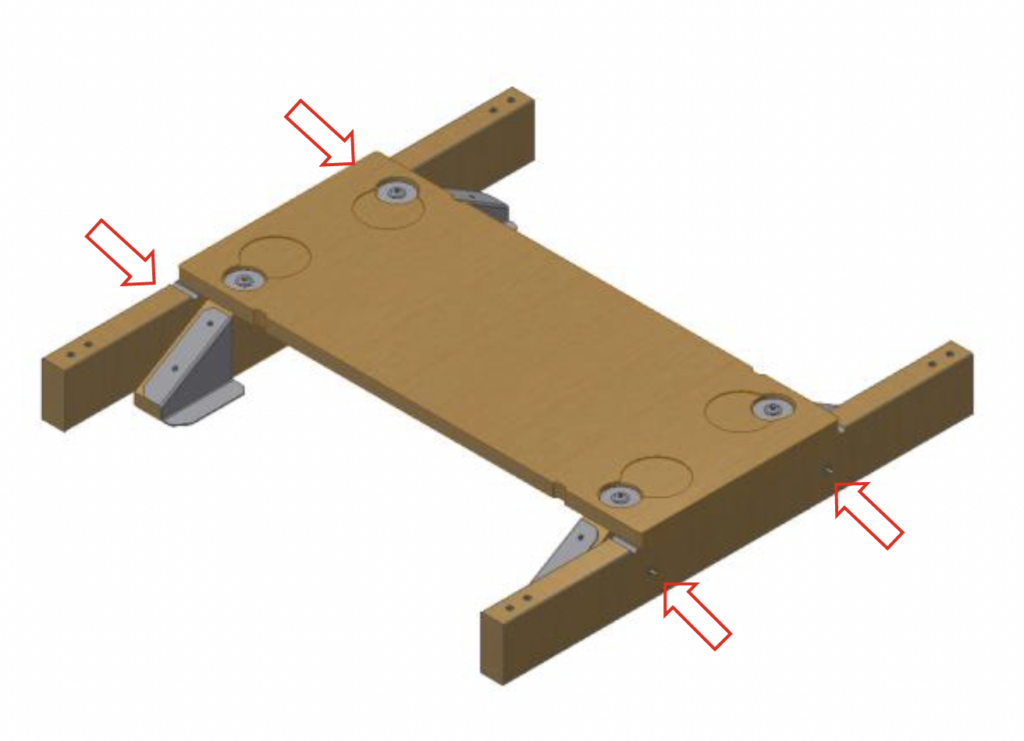

Use the bit ⑤ to screw ③ into the feet of the pallet. Do this for all 4 screws ③.

Instructional image supporting textual instruction step 3 to assemble a Large Footprint Pallet.

Step 4:

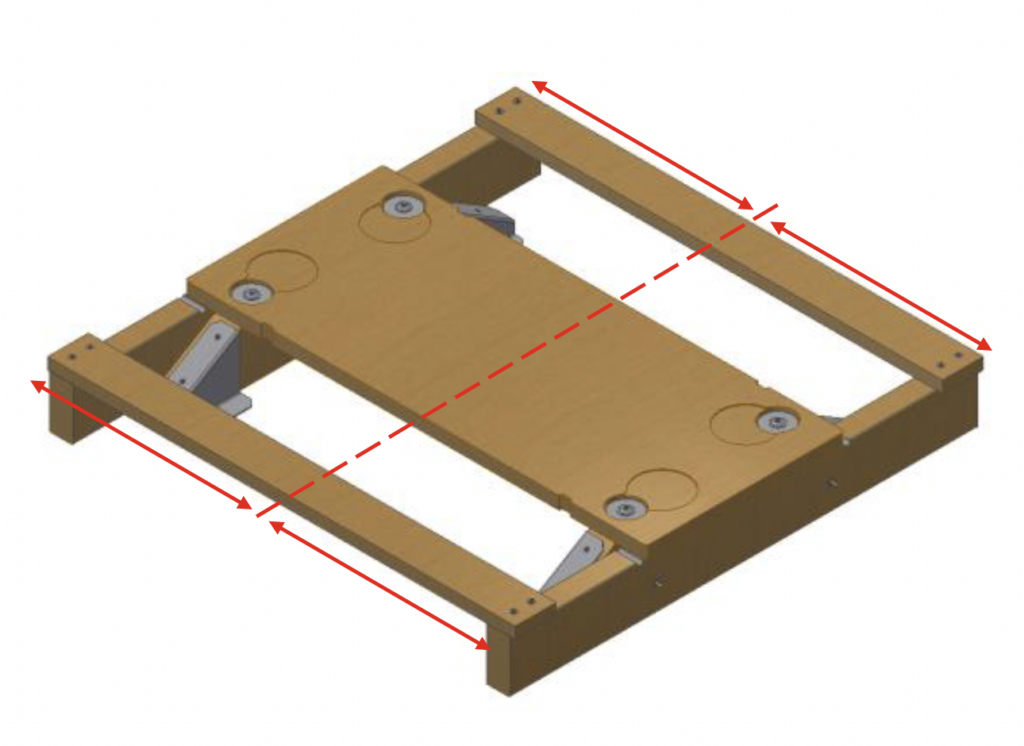

Place 2x beam  ① on both sides of the pallet. Making sure to align the beam to the center of the pallet.

Instructional image supporting textual instruction step 4 to assemble a Large Footprint Pallet.

Step 5:

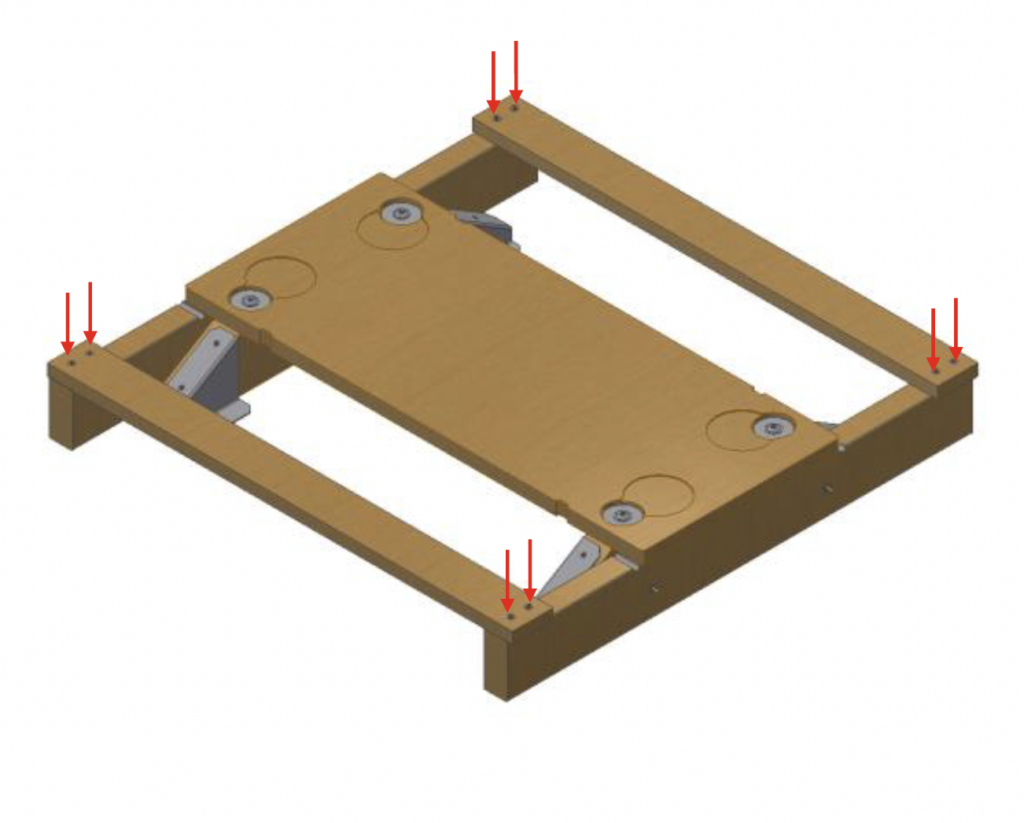

Use the bit ⑤ to screw ④ through beam ① into beam ②. Do this on 2 positions, for all 4 corners of the pallet.

Instructional image supporting textual instruction step 5 to assemble a Large Footprint Pallet.

Step 6:

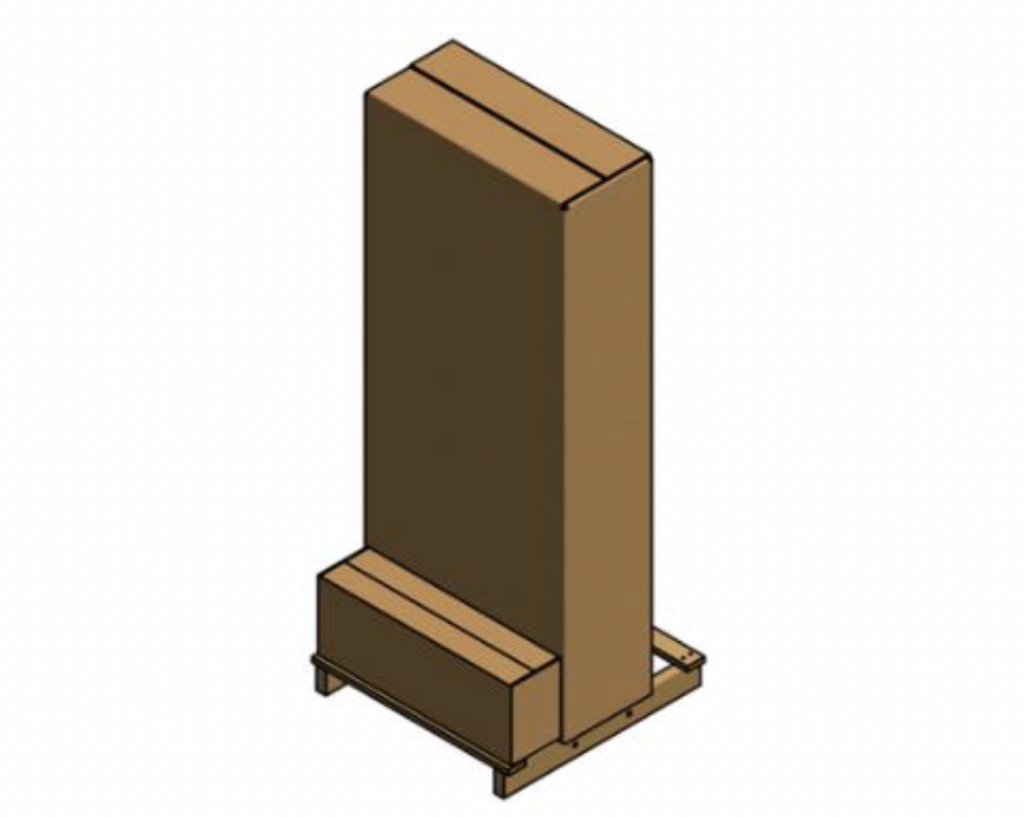

Add the correct accessory box (not included in this kit). Fixate by applying stretch wrap, prior to transport.
